China Pad mounted transformer manufacturer. YBM series pad mounted transformer is ANSI standard compact transformer substation which is manufactured by Naten Electric. Excellent cooling and drying system inside. High quality and low cost.

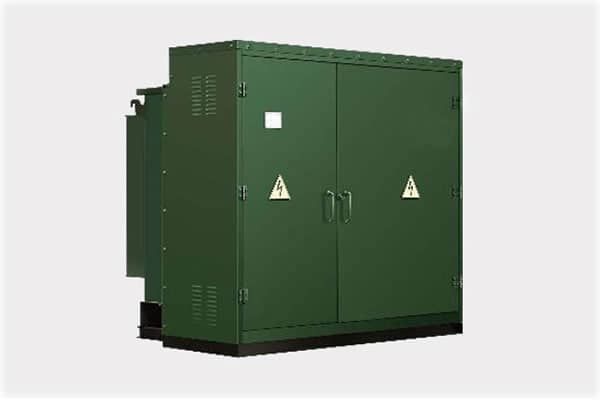

Pad Mounted Transformer
YB() American-pattern tank-type transformer, also called pad-mounted transformer, is a functional and energy saving combined transformer which integrates the high voltage device, low voltage device, transformer and other components. Its small but strong body and high efficiency make it suitable for outdoors and indoors usage.
The sealed tank is made from high quality stainless steel with special design which helps to protect the devices and reduce the heat inside. Excellent cooling and drying system.
Temperature control system and humidity control system are installed. When the temperature or humidity reaches certain levels, the systems automatically work to maintain the safe condition inside the tank.
It owns loop or dual power supply and terminal power supply two ways of power supply. Therefore, it can serve as a substation. Lower cost and higher efficiency.
It costs less than the traditional distribution house and only covers the area of about 3cbm.
Safety of Pad Mounted Transformer:
All the devices are isolated by thick steel board. The efficient insulation system helps to protect the people from electric accident. Easy installation and maintenance
The installation only requires connecting the cables. The fully sealed transformer design keeps the oil away from the air, so it is free of maintenance.
Working Conditions of Pad Mounted Transformer:
- Application: outdoor
- Working temperature: -25°C ~ +45°C
- Average temperature of the hottest month: +30℃;
- Lowest temperature: -25°C
- Max. difference in daily temperature: 25K
- Altitude: ≤1,000m
- Wind pressure: ≤700Pa
- Daily average humidity: ≤95% (at 25°C)
- Monthly average humidity: ≤95% (at 25°C)
- Installation place leaning angle: <3°
- Ambience requirement: free from fire, blast, chemical corrosion, avoid vibration
