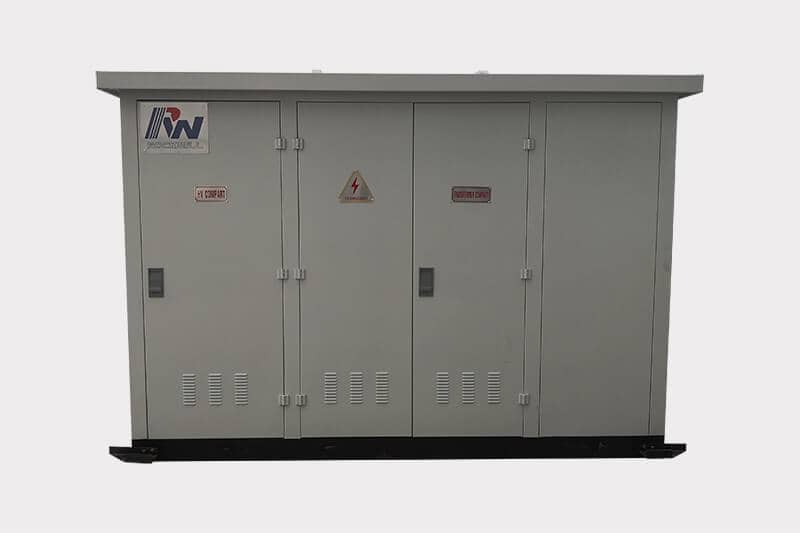

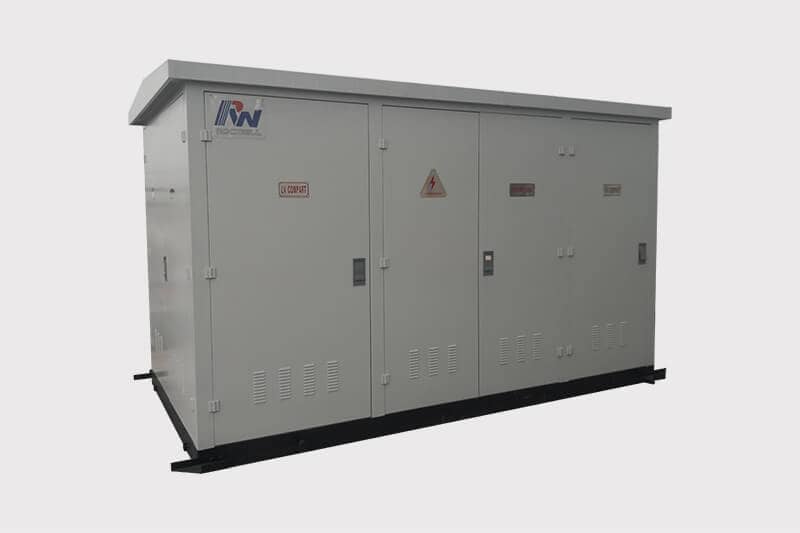

Naten - The professional manufacturer and solution provider of CSS compact substation

Naten Group, The leading manufacturer and core technology holder of CSS Compact substation from china.

Naten provides whole solution for CSS compact substation, the Voltage rating from 2.4kV up to 52kV level. Capacity up to 6300kVA.

So far, Naten's CSS compact substation is widely using in more than 30 countries from Africa to Asia and America. Besides, we aslo join-venture with our partner to do promotion manufacturing localization.

------------------------------------------------------------------------------

What is the advancetage of cooperation with Naten?

>>> Gain the Advanced technology from Naten's design and manufacturing experiencemore than 20 years.

>>> Saving your time for your business plan, especially for CSS compact substation.

>>> Competitive price of whole complete products self-manufcturing like: MV & LV switchgear, Power transformer, and metal parts.

>>> Ready type test, Ready technical team, Complete production line and rich experience overea running.

------------------------------------------------------------------------------

What brand compoents of CSS compact substation?QUALITY?

>>> The power & Distribution transformer with 5 years quality warranty, 30 years life at normal. Brand Naten transfomer.

>>> MV & LV switchgear with 5 years quality warranty, 30 years life at normal. Brand Naten Electric.

>>> CT/PT metering unit, Voltage transformer, Current transformer, Sensor, etc.

With 5 years quality warranty, 30 years life at normal. Brand Naten Electrical.

>>> Protection relay, controller, SCADA system, Software, relay & control panel, etc.

With 5 years quality warranty, 30 years life at normal. Brand Naten Automation.

>>> MV & HV GCB, Operating mechanism, VCB LBS, Switch,ACR,Sectionalizer,etc.

With 5 years quality warranty, 30 years life at normal. Brand Powertech Electric.

------------------------------------------------------------------------------

What other product you can cooperate with Naten?

Naten group is holding 5 branch-manufacturing factory, the products covering:

>>> MV& LV Switchgear, GIS switchgear, Ring main unit, AIS switchgear, etc.

>>>Power & distribution transformer, Step voltage regulator, etc.

>>> CT/PT metering unit, Voltage transformer, Current transformer, Sensor, etc.

>>> Protection relay, controller, SCADA system, Software, relay & control panel, etc.

>>> MV & HV GCB, Operating mechanism, VCB LBS, Switch,ACR,Sectionalizer,etc.

>>> Power and grid quality solution products, power generation solutions, T&D solutions.

------------------------------------------------------------------------------

What Other type substation does Naten make?

>>> Mining substation

>>> Unitized skid substation

>>> Package substation

>>> Mobile substation

>>> Padmount transformer substation / ANSI standard US substation

>>> Mini substation / Miniature substation

>>> kiosk substation

>>> Portable substation



Main Designation Characteristics

The crust of the substation is designed according to the foreign advanced technology and physical reality. We provide many kinds of crust material such as aluminum alloy steel composite stainless steel board and non metal material(glass fiber).

The HV side use charge switch or vacuum circuit breaker. The transformer could be oil type hermetically-sealed type and dry type.

The proof of the box is double layers structure and between the layers is filled with foam. There are independent boards in HV and LV room, and in the transformer room will install auto thermal controller heater and cooling equipment.

Note: we offer special customized products according to client’s requirement.



More information pls refer to our CSS compact substation catalogs.
