China 15kV Compact substation Naten is a professional manufacturer of IEC/ANSI standard CCS compact substation, which is widely using in worldwide with a long life and high quality guarrantee.
15kV Compact substation
- YB series compact substation is a kind of set of equipment which assembles the MV switch apparatus, transformer, LV distribution equipment together according to fixedconnection scheme.
This series substation is suitable for neighborhood unit, hotel, large-scale work site and high building that the voltage is 12kV /24kV/36kV/40.5kV, the frequency is 50Hz and the capacity is under 2500kvA.
Service environment
a) Air temperature: Maximum temperature: +50℃; Minimum temperature:-55℃
b) Humidity: Monthly average humidity 95%; Daily average humidity 90% .
c) Altitude above sea level: Maximum installation altitude: 2500m
d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
e) No frequent violent shake
Main Designation Characteristics

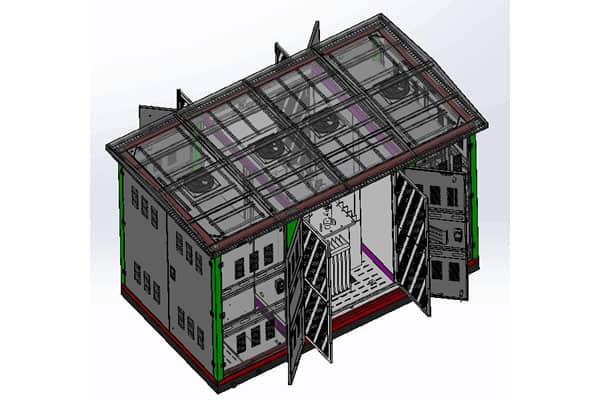

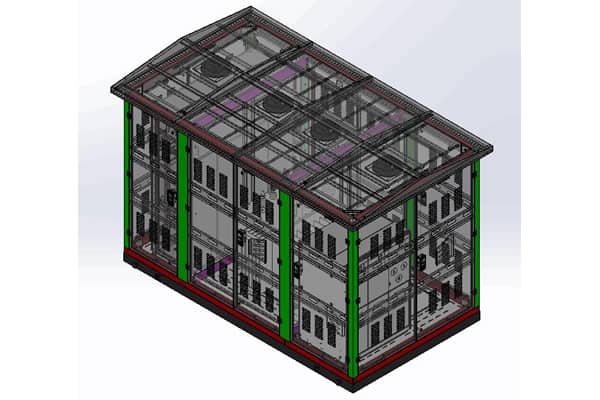

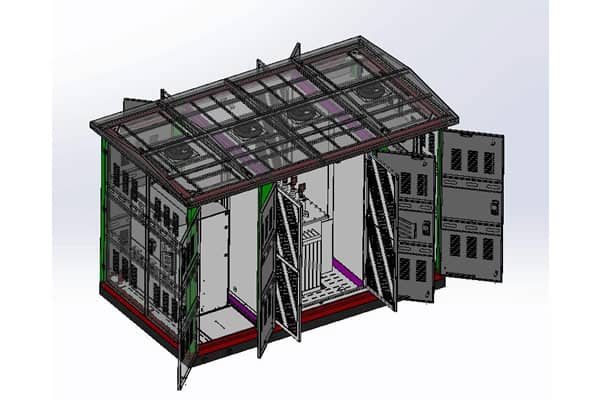

The crust of the substation is designed according to the foreign advanced technology and physical reality. We provide many kinds of crust material such as aluminum alloy steel composite stainless steel board and non metal material(glass fiber).
The HV side use charge switch or vacuum circuit breaker. The transformer could be oil type hermetically-sealed type and dry type.
The proof of the box is double layers structure and between the layers is filled with foam.There are independent boards in HV and LV room, and in the transformer room will install auto thermal controller heater and cooling equipment.
Note: we offer special customized products according to client’s requirement.
---------------------------------------
What we are manufacturing?
Miniature substation, CCS substation, Compact Substation,Unitised Substation,Package Substation,Koisk substation.
All CSS can be equiped with Oil Type & Dry Type Transformer.
HV Voltage Ratings are 2.4kV,3.3kV,6kV,6.3kV,10kV,11kV,13.2kV,13.8kV,14.4kV,15kV,20kV,22kV,23kV,30kV,33kV,34.5kV,35kV
Capacity rating are 100kVA,125kVA,160kVA,200kVA,250kVA,315kVA,400kVA,500kVA,630kVA,750kVA,800kVA,
1000kVA,1250kVA,1600kVA,2000kVA
2500kVA,3150kVA,4000kVA,5000kVA
---------------------------------------
How many countries CCS made by Naten is running ?
CCS substation runs in:
Africa: such as Nigeria,TOGO,Uganda,Zambia,Tanzania,Ethiopia,Mozambique,DRC congo,Congo,Cameroon,Cote d'Ivoire,Algeria,Angola,South Africa,Kenya,etc....
Asia and America countries: China,Indonesia,Cambodia,Vietnam,USA,Philipines,Bangladesh,Pakistan,Mongolia,Iraq,Yemen,etc....
