10kV Eco Friendly Gas Insulated RMU

Eco-friendly	This product uses no harmful gases or greenhouse gases, and more than 95% of the materials used are eco-friendly recyclable materials; the proportion of epoxy resin parts and components is less than 5%.
Maintenance Free	All high-voltage components are either gas-sealed or metal-enclosed, preventing rust and corrosion of parts. The electrical components have a long lifespan, stable performance, and can achieve maintenance-free operation.
Higher Reliability and Security	The conductive part of the main circuit is sealed with eco-friendly gases and the high-voltage live conductors are enclosed, unaffected by changes in external environmental conditions. This allows the equipment to be used in places with harsh environments, ensuring long-term operation. It has high reliability and no risk of electric shock or fire. Excellent gas tightness ensures it can serve for 30 years without needing gas replenishment.
No Partition/Solid Seal Design	The core switch design does not use interphase insulation partitions or solid seal methods to improve heat dissipation capacity and reduce the risk of partial discharge and phase-to-phase insulation failure caused by insulation aging failure.

GET A QUOTE

Detail

Place of Origin:	China
Product Features:	Eco-friendly
Insulation Method:	Gas Insulated
Voltage Level:	10kV
Highlight:	10kV gis rmu, gis rmu, gas insulated ring main unit rmu

S/N	Name		Unit	Load switchgear C	Combined electric cabinet F
1	Rated frequency		Hz	50/60
2	Rated voltage		kV	12
3	Rated short-time power frequency withstand voltage	Phase-to-phase and Phase-to-earth	kV	42
		Across isolating distance	kV	48
4	Rated lightning impulse withstand voltage	Phase-to-phase and Phase-to-earth	kV	75
		Across isolating distance	kV	85

5	Rated current		A	630	125
6	Rated peak withstand current		kA	50	/
7	Rated short-time withstand current		kA	20	/
8	Rated short circuit duration		s	4	/
9	Rated short circuit breaking current		kA	/	31.5
10	Closing current (peak)		kA	50	80
11	Electrical life rating (main switchgrounding switch)		/	E2	/
12	gas rated pressure (20℃)		MPa	0.025
13	annual gas leakage rate		%	≤0.01
14	Mechanical endurance for circuit breaker		Time(s)	10000
15	Mechanical endurance for load switch		Time(s)	3000
16	Mechanical endurance for isolating switch		Time (s)	3000
17	Mechanical endurance for grounding switch		Time (s)	3000
18	Gas tank protection degree		/	IP67
19	Shell protection degree		/	IP4X

The eco-friendly gas ring main unit is a gas switchgear independently developed by Naten. It uses a safe and eco-friendly mixed gas instead of SF6 as the insulation medium in the gas box to solve the problem of SF6 gas leakage pollution. It has a high level of operational safety and is used as the core unit in the distribution network.
The eco-friendly gas insulated ring main unit uses inert gases such as dry air, nitrogen, and C4 to provide insulation, making it more eco-friendly; The use of eco-friendly solutions is more in line with the development direction of China's power industry, so eco-friendly gas ring main unit has become a more popular type of ring main unit in China at present. Compared to conventional switchgear products, ring main unit is more lightweight, convenient for transportation and installation. Excellent intelligent design fully meets the current demand for smart grids in China, improves electricity safety, greatly increases daily work efficiency, and reduces the burden of manual management.

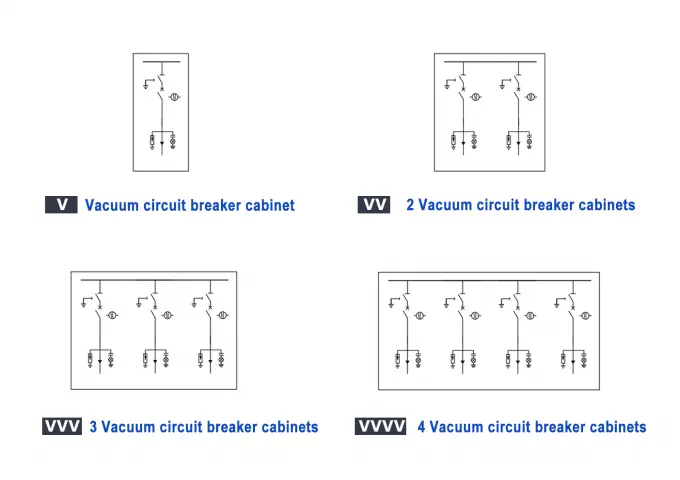

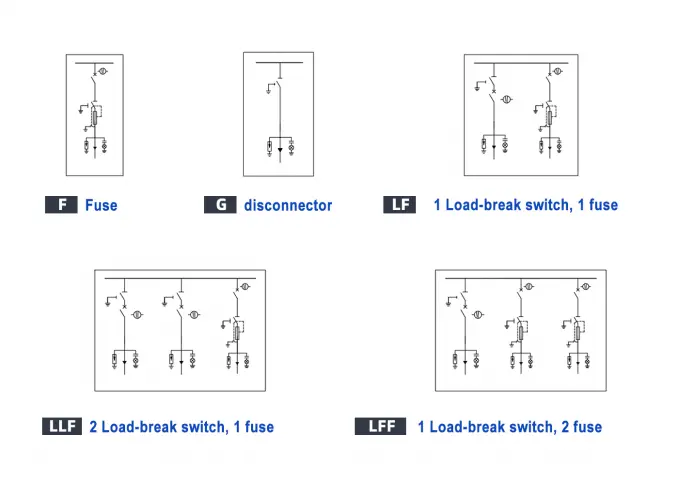

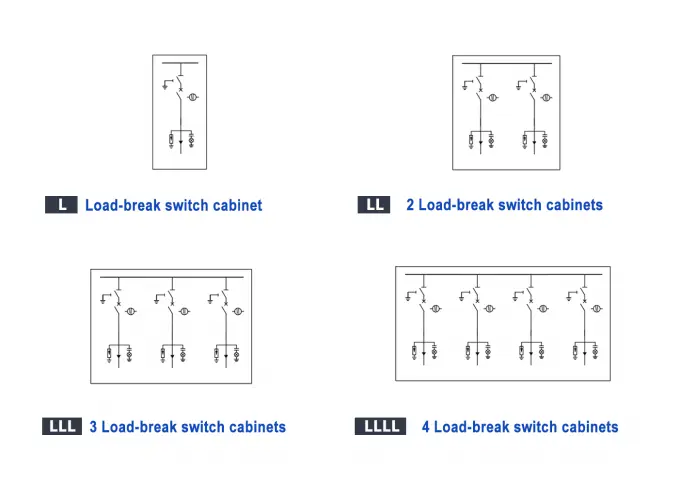

Our series is divided into two types: II type (lower isolation); Type IV (upper isolation)
