24kV SF6 Gas Insulated RMU

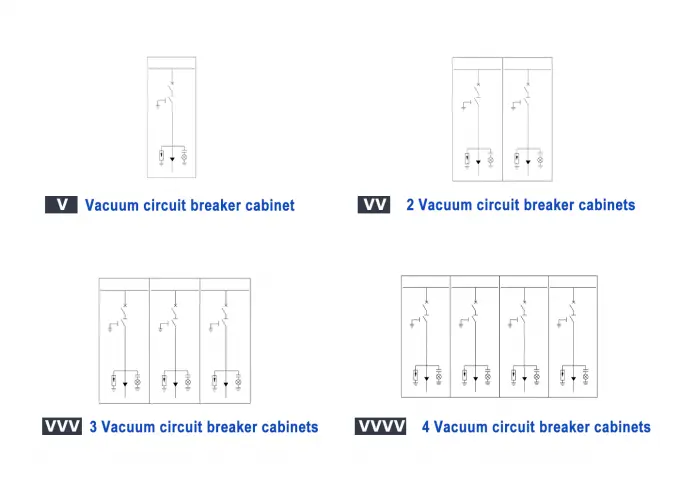

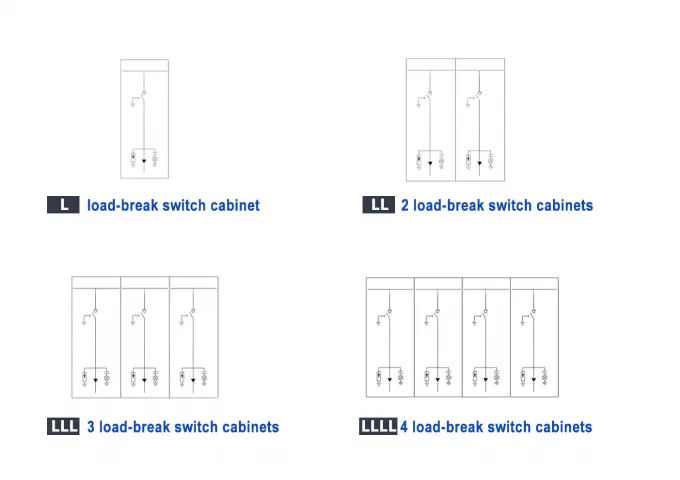

Modular and expandable	The use of expansion modules in coordination allows for up to five modules with the same gas tank. Beyond that, further expansion is achieved through busbar expansion.
Maintenance Free	SF6 gas integrated structure, with moving and static contacts, arc extinguishing chamber, busbar sealed in the same gas tank. It is designed for a maintenance-free life of 30 years.
Reliable Mechanical Interlock	It has a variety of reliable mechanical interlocks, and there are analog signs on the cabinet panel to fully ensure the safety of operation.
Automatic and Intelligent	Cooperate with DTU to realize automatic and intelligent control.

GET A QUOTE

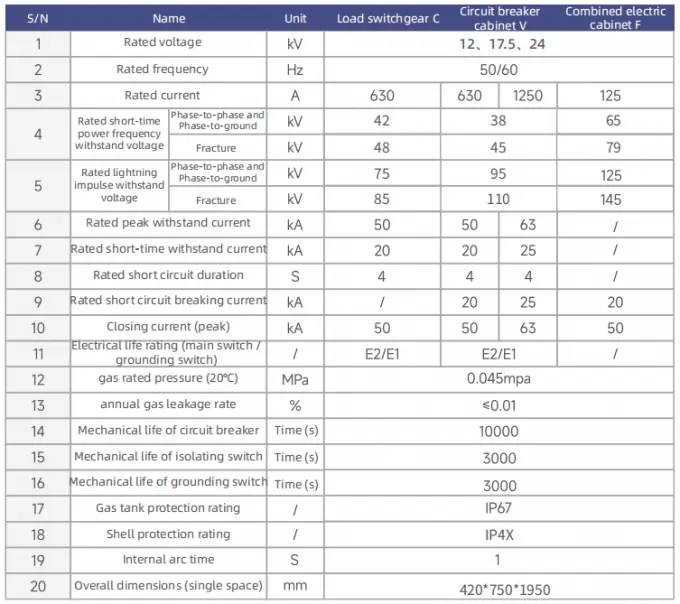

Detail

Place of Origin:	China
Insulation Method:	Gas Insulated
Voltage Level:	24kV
Highlight:	24kv rmu sf6, Rmu sf6, gas insulated gis ring main unit

Ring main unit is a SF6 gas insulated metal enclosed switchgear independently developed and produced by our company. The equipment uses SF6 gas as insulation and breaking medium, and the load switch, vacuum circuit breaker and live busbar are all sealed in a closed stainless steel container filled with a certain pressure. The external American standard / European standard bushing is connected with the incoming and outgoing cable through the cable joint to form a fully insulated and fully closed structure. This effectively prevents flooding and withstands contamination, making it suitable for various harsh environments. The product is widely used in 24kV ring network or terminal power supply system.
